INJECTION RTM & INFUSION UNIT

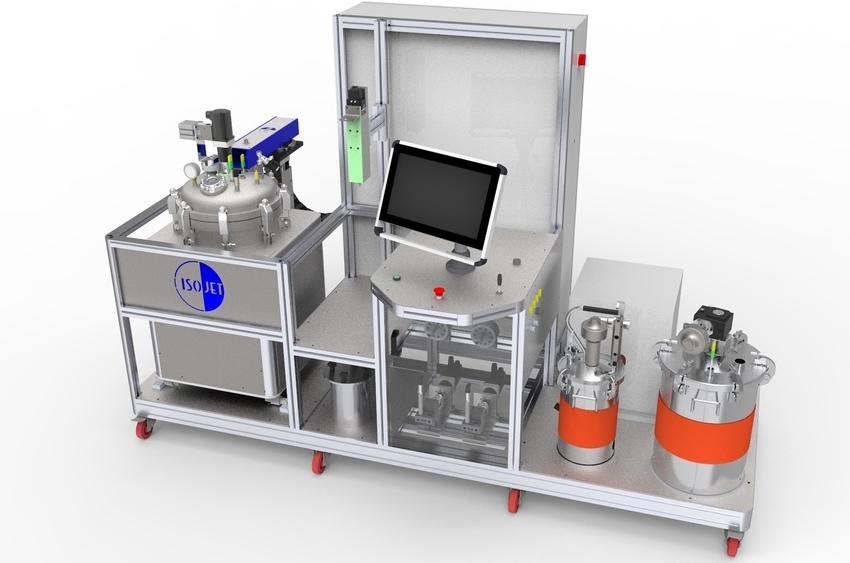

Our 1K-2K injection & infusion machine is a special machine which is composed of a preparation tank and a DPE Indus on the same frame.This machine allows to process either a single component with its preparation tank or a 2 component resins with its part DPE indus.
Perfectly adapted to Polyurethane or Epoxy , this 1K-2K injection & infusion machine can be used throughout RTM injection, infusion, casting and moulding.
This machine is equipped with the variable flow and ratio as well as an intuitive interface developed internally allowing the programming of casting recipes.
You think that this hybrid machine “preparation tank and DPE indus” could be adapted to your application?
Contact us by mail or with the form at the bottom of the page and discover the possibilities of our machines adaptable to your application!
CHARACTERISTICS
- Flow rate (cc/min) : 50 to 400
- Mix ratio : 100/10 to 100/100
- Viscosity resins (mPas) : 10 to 15000
- Tank volume : 9L to 70L
- Resins type : PU / EPOXY / RTM
- Heating up to 150°C
- Power supply : 230V / 400V
- Injection pressure :3 bars / 10 bars
- Vacuum : 1 mbar
- Monitoring Schneider Citect
OPTIONS
- Heating and Stirring
- Flowmeter
- Degassing / Vacuum
- Fixe or mobile mixing head
- Tank feeding with a 200L or a 1000L container
- Drums scan
- Temperature of use : up to 300°C in 1K
- Integration of a weight scale
- Regulating injection flow
- Pressure up to 25 bars
- Possibility to manage automatically the filling
- Automatic up/down system for tank’s lid
